GPS/Server based Wireless Clocks
Master Clock
- Transmission frequency : 433.5MHz.
- Transmission time : < 2 milliseconds.
- GPS Module : GPS-634R.
- Antenna : Telescopic.
- Antenna Cable : RG217 10 meters.
- 16x2 Liquid Crystal Display to display RTC at master clock.
- Updates network every minute (New joining nodes) within the radius.
- Operating voltage is 230VAC.
- Dimensions : 245mm L x 180mm W x 110mm D.
- Model No : SWDC105M.

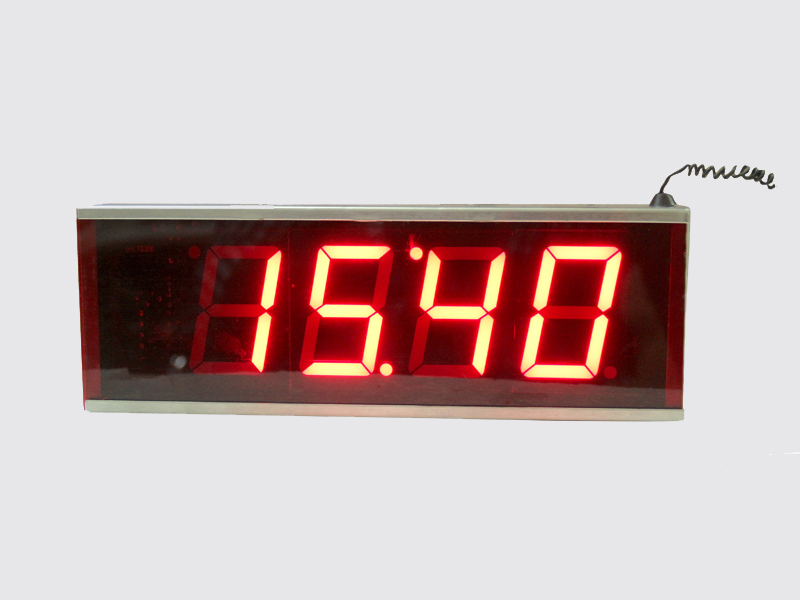

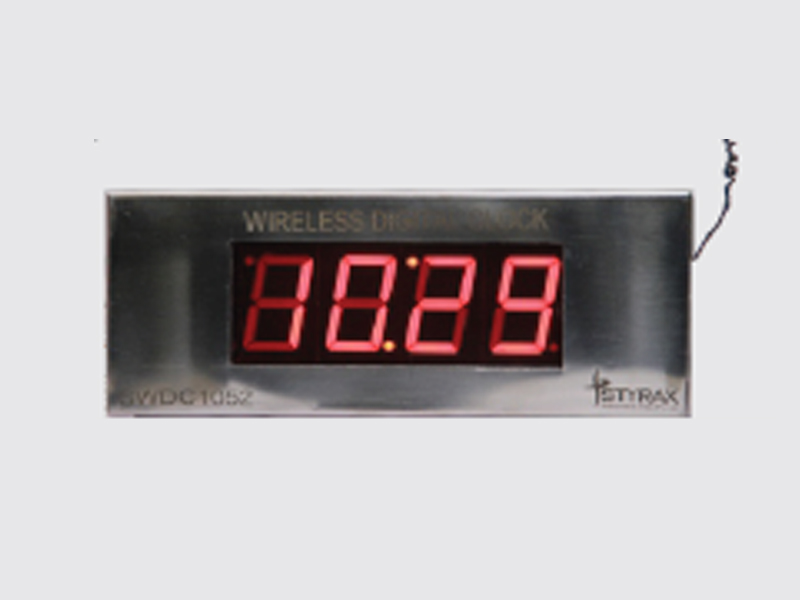

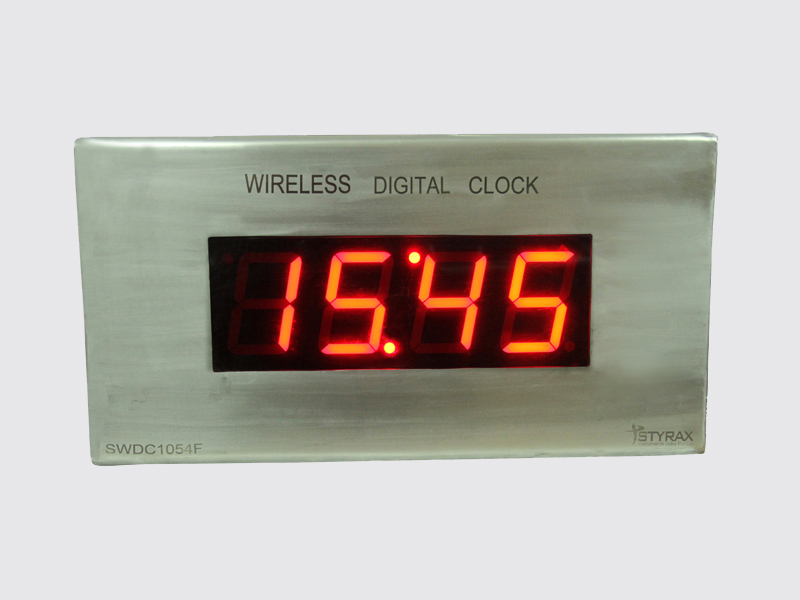

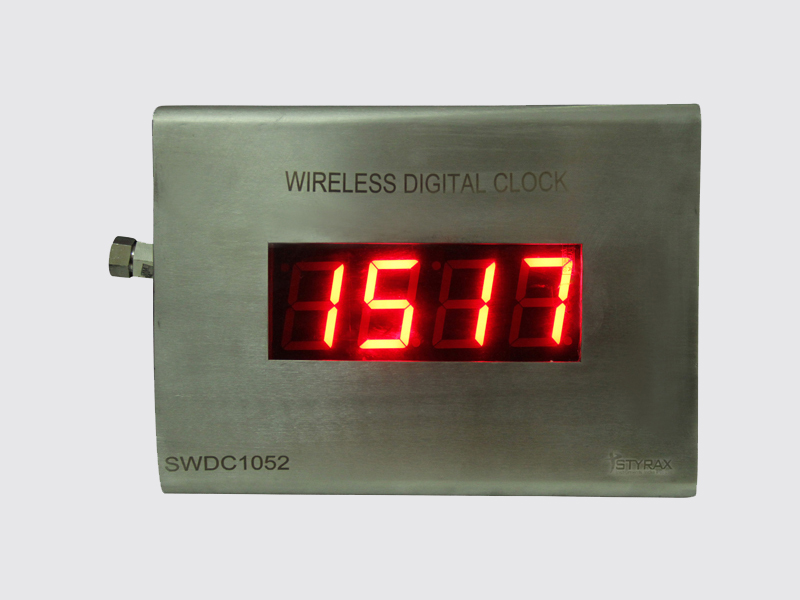

Slave Clock
- 4 digit 7 segment 2”/4” LED display to display Hours and Minutes.
- LED Color : Red or Green.
- Operating Frequency : 433.5MHz.
- RF Sensibility : -106dBm.
- Modulation mode : ASK.
- Time format : 24Hrs.
- Operating Voltage : 230VAC.
Model Nos :
1) SWDC 1052.
2) SWDC 1052F.
3) SWDC 1054.
4) SWDC 1054F.
All Slave Clocks can available in 2”, 4”, 6”, 8” with both FLP and NFLP Enclosures.
