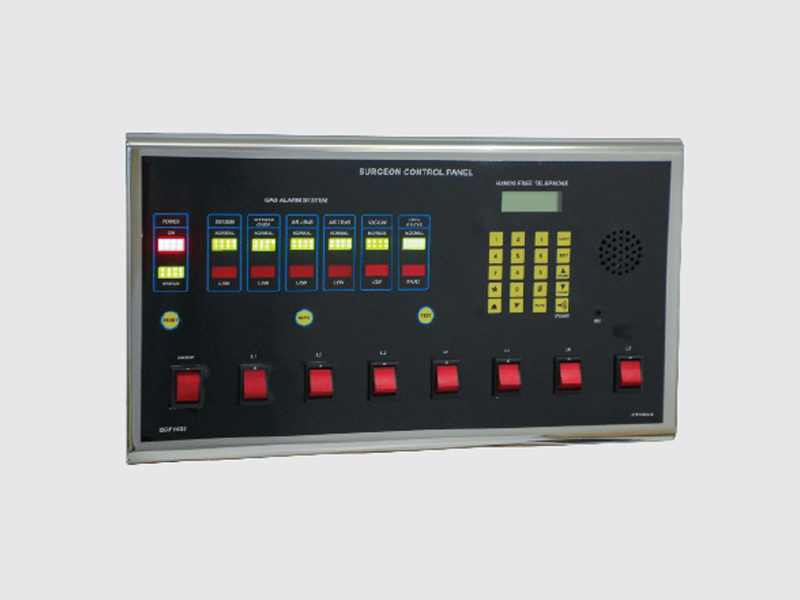

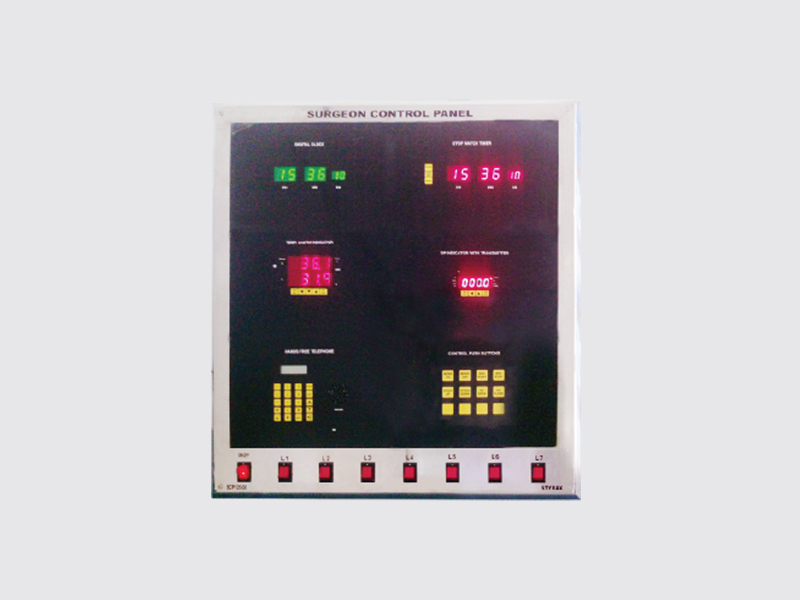

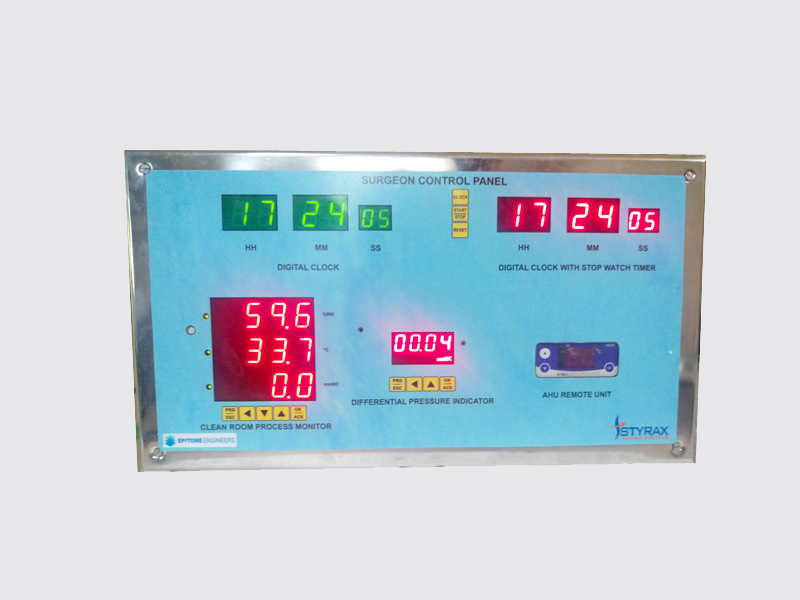

Surgeon Control Panel (SCP1056)

Description:

The “STYRAX” Surgeon Control Panels (SCP), sometimes called Theatre Control Panels (TCP) or Operating Room Control Panels,are the central focus for infrastructure controls as well as alarms and information required in an Operating Room. This focus has two main benefits; it allows the users to only have one familiar source of information and lets the facilities staff easily inspect and maintain several different subsystems, without disrupting the wall infection integrity.

Features:

• STOPWATCH Timer
• Real Time Clock
• Temperature, RH and Differential Pressure display unit with in-built integral sensor
• Differential Pressure display unit with integral in-built sensor
• Medical Alarm system
• Hands Free Telephone
• OT control Switches
• Wall or Modular mounting
• SS-304 faceplate and MS powder coating backside box

Specifications

Stop Watch Timer cum Real Time Clock:

• Display Stop watch time with HH:MM:ss format
• 3 Keys - Capacitive Touch keypad to Start, Stop and Reset stopwatch timer
• Red Color 1.0” 7-Segment display to display Hours and Minutes
• Red Color 0.8” 7-Segment display to display Seconds

Real Time Clock:

• Display Real Time Clock in HH:MM:ss format
• Green Color 1.0” 7-Segment display to display Hours and Minutes
• Green Color 0.8” 7-Segment display to display Seconds
• 5 Keys - Capacitive Touch keypad for configure Real Time Clock

Hands Free Telephone:

• Analogue or IP based Hands Free Telephone

Medical Gas Alarm System:

• Gas Alarm System monitors 5 types of Gas levels with Low and Normal alarm buzzer
• Oxygen, Nitrogen, CO2 and etc;

Temperature, RH and DP indicator:

• Display Temperature, RH and DP with in-built sensor
• Red Color 3 Channel 1.0” 4 digit 7-Segment display
• Differential Pressure measure the pressure difference between Inside the Room Atmosphere or Inside LAF and Room Inside.

Measuring Range:

• %RH: 0.0 – 100.0 %RH
• Temperature: 0.0 – 50.0 °C
• Differential Pressure: -25.4 to 25.4/-50.9 to 50.9/-105.4–105.4 mmWC

Accuracy:

• %RH: ±2% RH for 10-90%,±3% RH for remaining
• Temp: ±0.3°C for 0-60°C
• Differential Pressure: ±1.5% for all units

Keypad:

• 5 Keys - Capacitive Touch keypad to configure set parameters

DP Indicator:

• Display differential pressure with inbuilt integral sensor
• 4-digit 0.56” 7-Segment red LED display
• Programmable using front panel keypad
• Differential Pressure measure the pressure difference between Inside the Room Atmosphere or Inside LAF and Room Inside.
• Measuring Range: -105.4 – 105.4 mmWC,-1034 – 1034 Pa,
• Accuracy: 1.5% for all units
